Description:

Product Description

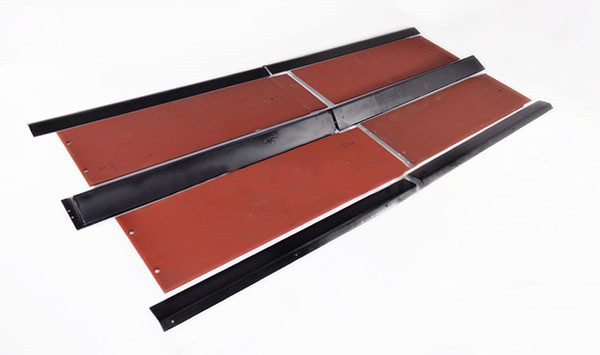

Floor Plate Protector is made of high quality and wear-resistent materials. Floor Plate Protector can be used to avoid early wear of floor plate. It is one of the most important conditions to ensure the paver in continued normal construction.

底板的保护是由优质耐磨材料。地板板保护器可避免地板早期磨损。它是保证摊铺机继续正常施工的重要条件之一。

1, in the use of the paving machine, how to do a good job in the maintenance of hydraulic system?
Answer: in the use of the paving machine, do a good job in the maintenance of hydraulic system, you can greatly reduce the fault. General should pay attention to the following points:
(1) hydraulic oil in hydraulic tank joined the former, should use clean containers of oil, hydraulic oil must be after oil filter filter, then add the hydraulic oil tank; the replacement cycle of the hydraulic oil as the oil quality and (1000h changed once; replacement of hydraulic oil should be in the working temperature; in order to ensure good heat dissipation of the hydraulic system, should also regularly clean hydraulic oil radiator.
(2) due to the asphalt paving machine construction environment is generally relatively poor, hydraulic oil filter replacement cycle should also be shortened (generally was750h is appropriate), replacing with a new filter element, when should be checked, prohibited the use of deformed, pollution or rusty filter.
(3) in the daily start of the engine work, should be idle for some time after the operation, and then to control the implementation of components, so that the use of hydraulic pump.
(4) due to the long-term use, the hydraulic system parameters will change, therefore, should be regularly check the hydraulic system parameter settings, to be adjusted in time.

1、在摊铺机的使用中，如何做好液压系统的保养工作？
答：在摊铺机的使用中，做好液压系统的保养工作，就可大大地减少故障。一般应注意以下几点：
（1）液压油在加入液压油箱前，应采用清洁的容器装油，液压油须经滤油器过滤后再加入液压油箱；液压油的更换周期视所用油液质量而定（一般1000h更换一次）；更换液压油应在工作温度下进行；为了保证液压系统的散热良好，还应定期清洗液压油散热器。
（2）由于沥青摊铺机的施工环境一般比较恶劣，液压油滤芯的更换周期也应缩短（一般以750h为宜），更换新滤芯时应做检查，严禁使用已变形、污染或生锈的滤芯。
（3）在每日启动发动机工作时，应先怠速运转一段时间后，再操纵各执行元件工作，这样有利于液压泵的使用。
（4）摊铺机由于长期使用，其液压系统参数有时会发生变化，因此，应定期检查液压系统的参数设置，及时加以调整。

2, how to do a good job of daily technical maintenance?

Answer: (1) cleaning stalls paver: remove paving machine surface accumulation of mud and sand and asphalt etc.; engine, hydraulic components and other components of the surface dust, grease removal. Attention, do not get dirt into the gas inlet and air filter.

(2) check the heating system nozzle, connecting pipe, tank and each switch.

(3) check stalls shop machine parts in the connecting and fastening situation, especially around the track beam and frame, screed, feeding device and a scraper conveying device connecting bolts are loose or broken necessary be to tighten or replacement.

(4) to check and eliminate the leakage of each part.

(5) check the engine oil, fuel, coolant and the number of hydraulic oil, and according to the provisions of the new oil to add oil to the oil mark.

(6) check the amount of grease in the centralized lubrication system.

(7) to check whether there is a crack in the blade of the screw feeder, if it is to be replaced.

(8) check whether the electrical plug is loose.

2、摊铺机如何做好日常技术保养？
答：（1）清洁摊铺机：清除摊铺机表面堆积的泥块、粘沙和沥青等；清除发动机、液压元件和其他部件表面上的尘土、油垢。注意，切勿将污物弄进各加油口和空气滤清器内。
（2）检查加热系统的喷头、连接管、气罐和各开关。
（3）检查摊铺机各零部件的连接和紧固情况，特别是左右履带梁和机架、熨平板、分料装置和刮板输送装置的连接螺栓是否松动或断裂，必要时予以紧固或更换。
（4）检查并排除各部位的渗漏。
（5）检查发动机的机油、燃油、冷却液以及液压油的数量，并按规定加入新油至油标指示刻度。
（6）检查集中润滑装置中润滑脂是否适量。
（7）检查螺旋分料装置的叶片是否有裂纹，如有应更换。
（8）检查各电气插头是否有松脱现象。
